Floorplan - 2016 Forest River RV Sierra 355RE
-
-
-
-
+6-
Sleeps 4
-
5 Slides
-
Rear EntertainmentFront Bedroom
-
41ft Long
-
12,139 lbs
-
Merlot, Pebble, Beachwood, Car

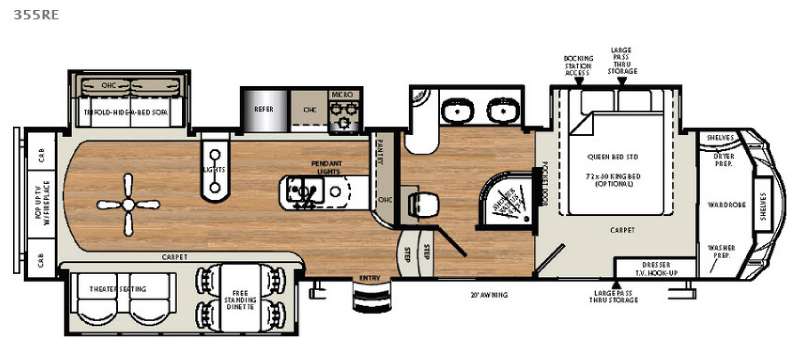

355RE Floorplan
Specifications
| Sleeps | 4 | Slides | 5 |
| Length | 40 ft 9 in | Ext Width | 8 ft |
| Ext Height | 13 ft | Int Height | 7 ft |
| Interior Color | Merlot, Pebble, Beachwood, Car | Hitch Weight | 2084 lbs |
| GVWR | 15500 lbs | Dry Weight | 12139 lbs |
| Cargo Capacity | 3361 lbs | Fresh Water Capacity | 60 gals |
| Grey Water Capacity | 100 gals | Black Water Capacity | 50 gals |
| Tire Size | 16" | Furnace BTU | 35000 btu |
| VIN | 042501 |
Description
The Sierra 355RE fifth wheel by Forest River offers so much space with five slides, and a rear entertainment center!
Stepping inside the 355RE, you will be in the kitchen and living areas, and there are three slides. To the left of the entrance is a free standing dinette and theater seating slide. The rear wall offers a pop up TV with fireplace and cabinets on either side. The tri-fold hide-a-bed sofa is located on a slide. The other slide has a refrigerator, three burner range, and microwave. There is a pantry, plenty of counter space, and a double kitchen sink.
Stepping up the stairs, the bathroom is to the left. Inside the bathroom, you will find a toilet, corner shower, and a slide with two sinks, and a linen cabinet.
The bedroom is very spacious and offers a comfortable bed, a dresser with tv hook-up, and a front wardrobe with shelves, and washer and dryer prepped.
You can even choose an optional king bed!
Features
Exterior
- Color match high gloss gel coated colored exterior fiberglass
- Painted aerodynamic fiberglass front cap with improved turning radius
- Docking station: easy winterization, hot and cold spray port, black Tank flush, pull valves for tanks
- Enclosed and heated dump valves
- Large tinted windows with 80/20 UV prohibitor
- Hickory Springs™ radius triple steps with 9″ riser (no pinched fingers)
- Dometic® “One-Touch” electric awning with LED light strip
- Power front jacks with spring loaded snap pins
- 16″ Radial tires (E-Rated)
- Automotive-style fender skirts
- Hitch light
- Exterior refrigerator (per floorplan)
- Porch light with interior switch
- 30 lb double LP tanks with auto change over
- Roof ladder
- Two (2) exterior speakers
- Rain gutters with extra long drip spouts (prevents black streaking)
- Insulated heavy duty slam lock baggage doors
- Exterior foldable grab handle
- Unobstructed pass-through storage area with cable jacks and 110V outlet
- Two (2) spray ports with 25’ hose (one on each side)
- Upgraded aluminum rims
- 7,000 lb axles
- Friction hinge entry door
Interior
- 84″ interior height with 6′ 4″ slide heights
- Stainless steel appliances
- Beauflor® tile look linoleum
- Real stone backsplash
- Four color coordinated interiors (Carbon, Coffee, Latte, Beachwood)
- Soft close full-extension drawer glides
- Stone cast under mounted kitchen sink
- Washer/dryer prep
- Handmade cabinetry with screwed lumber core stile construction
- LED lighting throughout
- Residential countertops
- Recessed residential lighting
- Colored shower surround with etched tile pattern
- Upgraded adjustable shower head with shelf
- Accent paneling in slideouts
- Accent lighting over dinette
- Walk-in shower with seat (select models)
- Moha accent crown molding over kitchen cabinets
- Extra large picture windows throughout
- Vented side windows in slideouts
- TV antenna with booster
- Solid wood drawer fronts with birch sides
- Upgraded raised panel cabinet doors with designer rails
- Bedroom slideout fascia
- Serta® memory foam mattress
- 40″ flat screen LED HDTV
- Premium soundbar with Sony® DVD player
- Designer window treatment accented per décor
- 9 cu ft stainless refrigerator
- Ceiling fan
- Tri-fold hide-a-bed sofa
- Residential stain resistant carpet
- Center mounted A/C unit for even cooling
- Quilted bedspread and headboard
- Trash receptacle in kitchen
- Teddy Bear® bunk mats
Construction
- Welded aluminum-framed, vacuum bonded laminated superstructure
- Laminated and fully insulated bathroom floor deck
- 2″ x 3″ floor joists 12″ on center
- 5/8″ tongue and groove plywood floor decking
- 3/8″ roof decking (full walk-on roof)
- Cambered powder coated frame with rust prohibitor
- Fully enclosed heated underbelly
- 5″ truss roof rafters
- R-10E sidewall construction
- Laminated sidewalls
- Laminated slideout walls
Appliances/Systems
- Dual zone ducted Dometic® 15 K A/C with quick cool (second A/C prep)
- 9 cu ft refrigerator
- Dual zone thermostat for living room and bedroom A/C
- Floor ducted 35,000 BTU furnace
- Three burner high-output range with 22″ oven
- Interior monitor panel for holding tanks
- Flush floor hydraulic slideouts (per floorplan)
- Satellite and cable hookup with RG-6 cable for high quality picture
- Porcelain foot flush toilets
- 10 gal DSI Water Heater
- 65 amp converter
- Dual battery prep
- EZ Breeze® power fan in bathrooms
- Over the range stainless steel microwave
Safety
- Smoke alarm
- Fire extinguisher
- Breakaway switch (battery hook-up required)
- Dead-bolt lock on entry door
- Liquid propane (LP) / Carbon Monoxide (CO) gas detector
- Fire escape windows
Options
- King bed (N/A 381RBOK, 343RSOK, 387MKOK)
- Solid surface countertops in kitchen
- Free-standing dinette with Four (4) chairs (365SAQB, 371REBH, 372LOK)
- Washer and dryer (per floorplan)
- Sofa in place of bottom bunk (per floorplan)
- Second air conditioner-bedroom
- Fantastic fan with power hood operated with wall switch
- 12V heated holding tanks
- Equaflex® equalizer system
- Electric rear jacks
- Party couch dinette (per floorplan)
- Beauflor® tile look linoleum
- Central vacuum
- R-38E insulation
- 6-Point hydraulic leveling system
- Roto Flex hitch pin
- Tri-fold Hide-A-Bed with hinged bunk overhead (bunk slides)
- Recliners IPO theater seating (where available)
- Party lounge with footrest and hide-a-bed sofa (365SAQB, 371REBH)
- 12" full slide U-Dinette (380BH5 only)
- Quad entry steps
- Slide room awnings (all slides)
- Rear manual awning (360PDEK only)
- Screen room (360PDEK only)
SIERRA Signature Package
- 9 cu ft stainless refrigerator
- Slam lock baggage doors
- Stainless appliance package
- Quiet-cool air conditioner
- Serta® memory foam mattress
- Wire and brace for second A/C (ducted)
- Residential stain resistant carpet
- Residential pull-out kitchen faucet
- Docking station
- 10 gal gas/electric water heater w/DSI
- High-gloss color matched gelcoated fiberglass exterior
- 16″ Spare tire kit
- 40" flat screen LED HDTV
- Aluminum wheels w/7,000 lb axles
- Over the range stainless steel microwave
- Washer/dryer prep
- EZ Breeze® power fan in bathroom(s)
- Water filter system
- Tri-fold hide-a-bed
- Rustic wood Beauflor® flooring
- "One Touch" Dometic® electric awning w/LED light strip
- Aerodynamic two-tone fiberglass painted front cap
- Decorative backsplash
- Soft close residential drawers
- Premium sound bar with Sony® DVD player
- LED interior lighting throughout
Ultimate Package (limited time offer)
- Premium solid surface kitchen countertops
- Wide stance hydraulic landing gear
- 20 cu ft stainless Whirlpool® French door residential refrigerator w/1,000 watt inverter
- Roller shades throughout
- 32" bedroom TV on swing arm
Polar Tech Package
- Thermal pane windows
- Heated holding tanks
- R-38E roof and all floors insulation
- 40K BTU furnace
- Double fiberglass insulation in roof and floor
All features and specifications are subject to change.
